Product Description

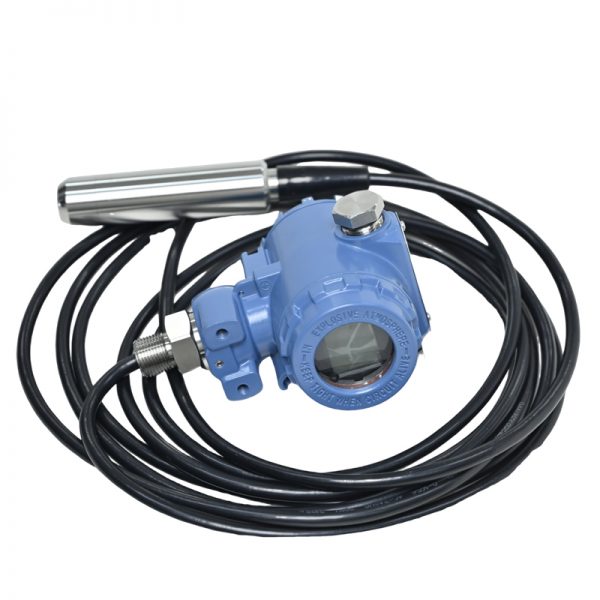

- YG210 immersion level transmitter
- Measuring Medium：Liquid
- Output：4-20mA；0-5V；0-10V；RS485；4-20mA/Hart；4-20mA/RS485
- Display：No/LCD/LED
- Accuracy：1%FS, 0.25%FS, 0.5%FS
- Measurement: gauge pressure, absolute pressure, negative pressure
- Electrical connection: Hirschmann connector, aviation plug, cable outlet5
- Connection：M20*5,1/2G,1/2NPT, flange；（materials SUS304/SUS316）
- Case：Die case aluminum alloy
- Mount type：bottom
- Pressure range：-1..0…40bar
- Power supply：10-30VDC/recommend 24VDC
- IP rate：IP65
- Overload pressure：150%
- Extreme overload：200%
- Compensation temperature：-10-70C
- TM Stability：±0.03% FS/°C
- Long-term stability：±1%FS/year
- Life Cycle：1×106 （cycles）
- Certificate：EMC,CE,EX
- Storage：temperature -40-60℃, humidity≤90%RH, atmospheric pressure 1atm
