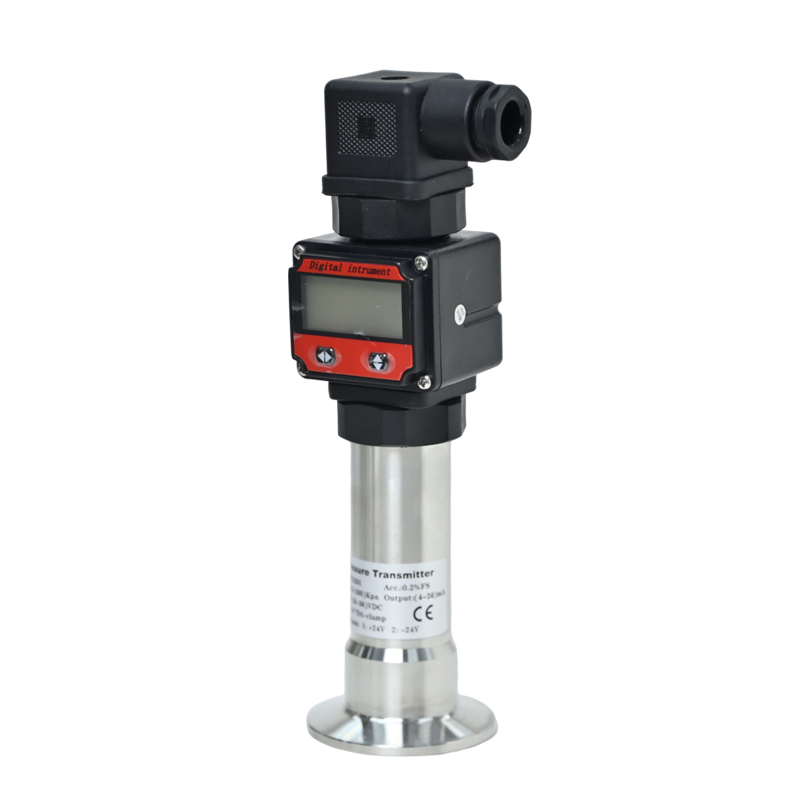

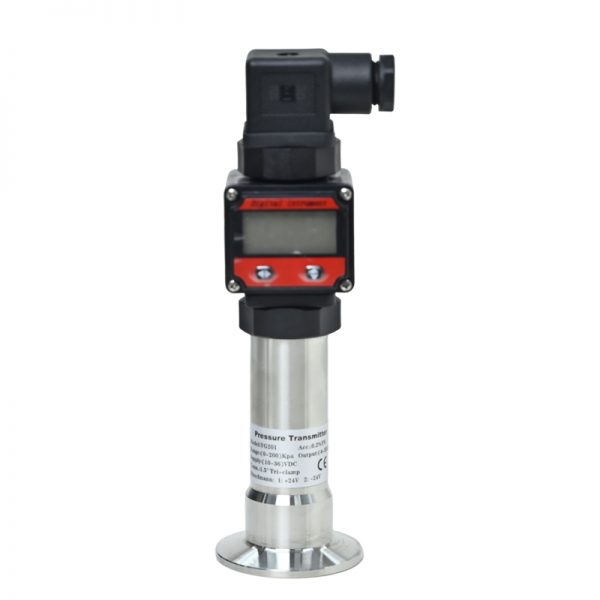

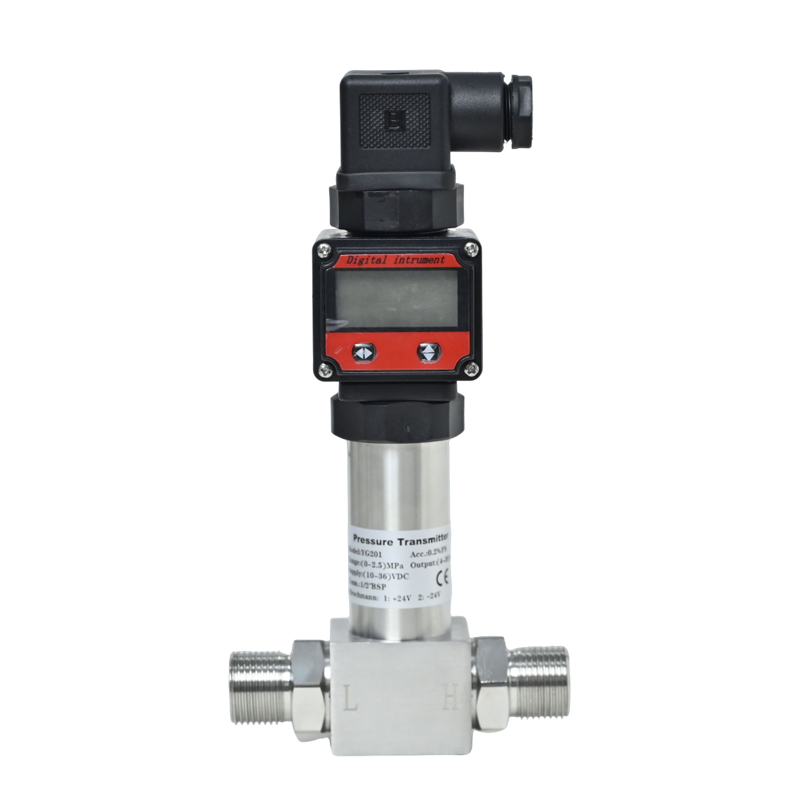

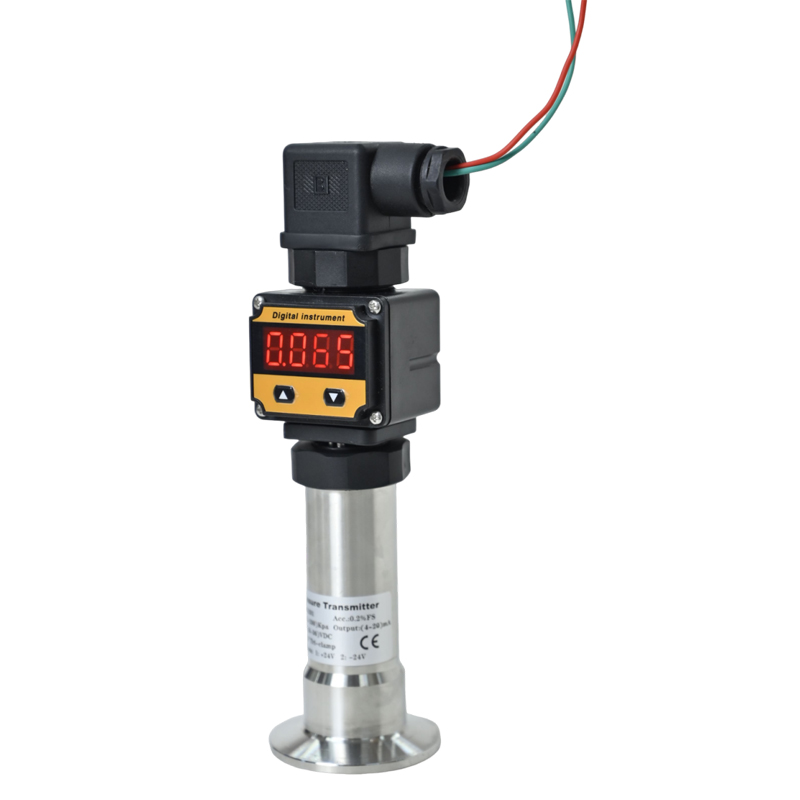

YG201 Universal Pressure Transmitter with display

Product Description

• Measuring Medium：Liquid, gas or mixture which are not attack the wet parts
• Output：4-20mA；0-5V；0-10V；RS485；4-20mA/Hart；4-20mA/RS485
• Display：LCD/LED
• Accuracy：1%FS, 0.25%FS, 0.5%FS
• Measurement:（GP）gauge pressure, （AP）absolute pressure, （NP）negative pressure,（DP）differential pressure
• Electrical connection: Hirschmann connector, aviation plug, cable outlet
• Connection：5,1/2G,1/2NPT,（materials SUS304/SUS316）
• Case material：SUS304/SUS316
• Pressure range：-1..0…1000bar
• Power supply：10-30VDC/recommend24VDC
• IP rate：IP65
• Overload pressure：150%
• Extreme overload：200%
• Compensation temperature：-10-70C
• TM Stability：±0.03% FS/°C​
• Long-term stability：±1%FS/year
• Life Cycle：1×10⁶ （cycles）
• Certificate：EMC,CE
• Working condition
• Storage：temperature -40-60℃, humidity ≤90%RH, atmospheric pressure 1atm
• Operating condition：temperature -40-60℃, humidity ≤90%RH, atmospheric pressure 1atm
