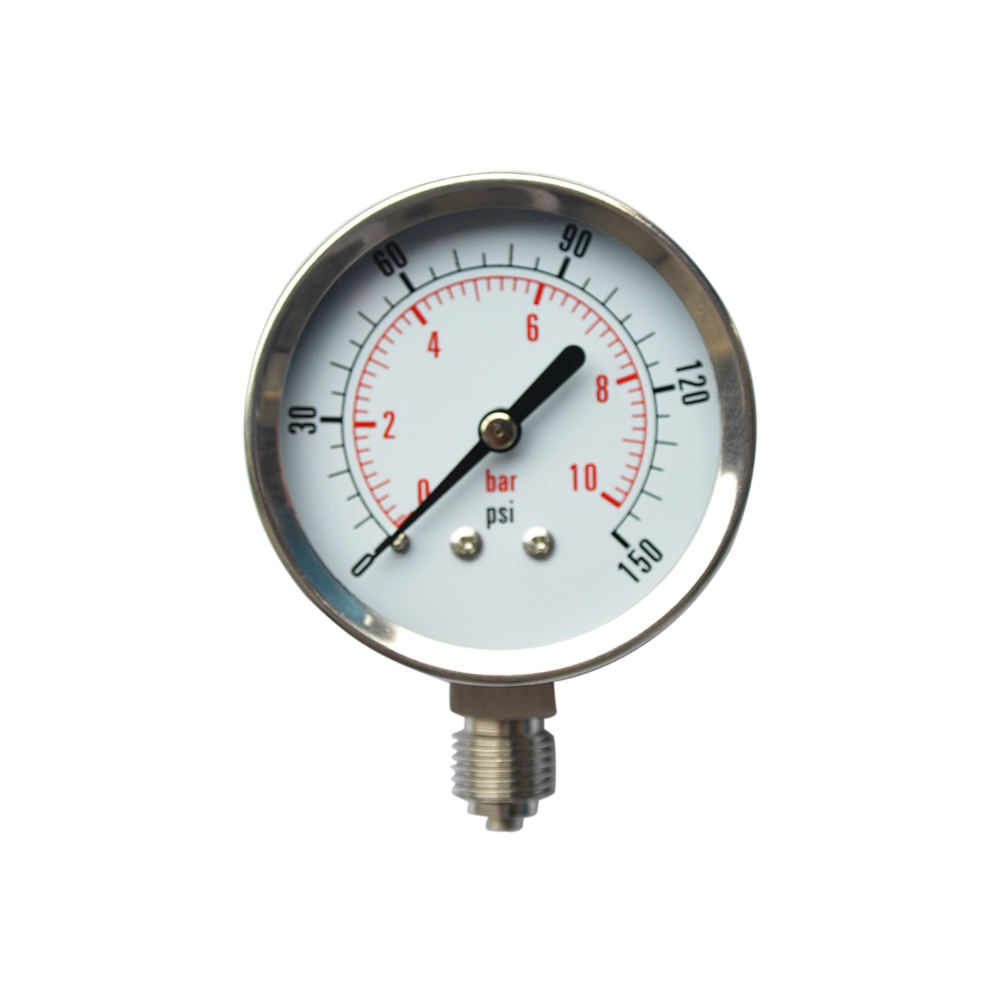

Product Description
Type 113
Applications
Used for hydraulic and pneumatic systems
Compressors , compressed air system
Suitable for fluid medium which does not clog connection port or stainless steel

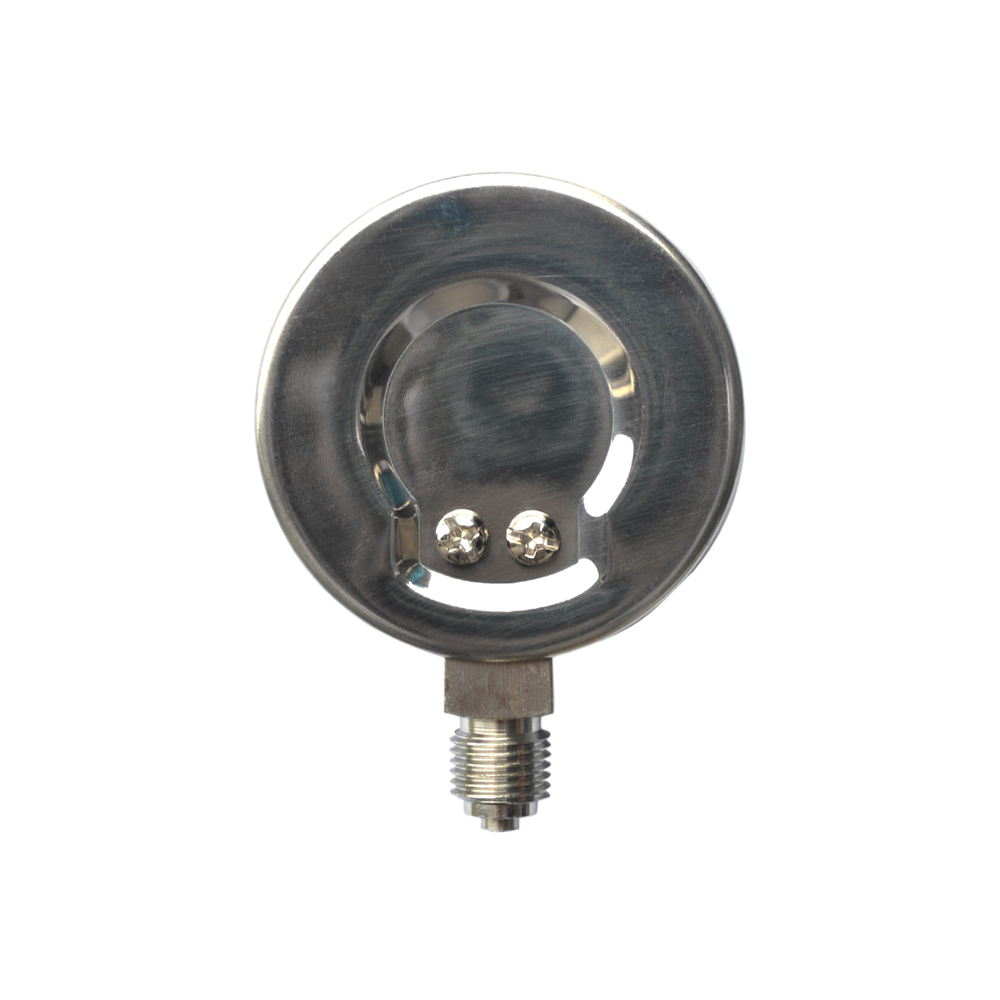

Case：stainless steel (stainless steel)
Ring：no (stainless steel)
Window：acrylic (glass,acrylic glass , polycarbonate)
Socket & Connection：stainless steel , (brass chromed)
Movement: stainless steel
Bourdon tube：stainless steel
Pointer and dial：aluminum
Range：vacuum , compound 0 to 10000 psi
Accuracy Class：F ± 3/2/3%(ASME B40 .100 Grade B)
Kl 2.5 FOR 1 1/2″ , 2″, Kl 1.6 FOR 2 1/2″ , 3″ , 4″
Operating temperature
Ambient：-67 °F to 212 °F (-55℃ TO 100℃)
Media：-67 °F (+176℃)(-55℃ TO 80℃)
