Product Description
Applications:
Design according to ANSI B40.1

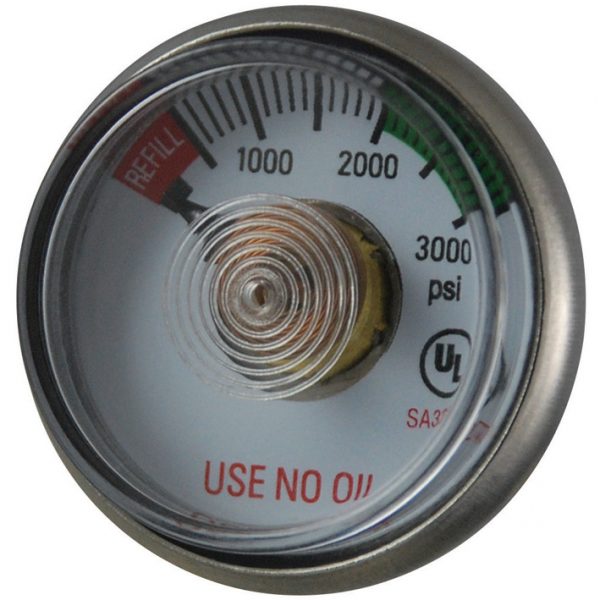

Medical oxygen use
Description:
Nominal size: (mm):
Ø36, Ø41
Case: 304 Stainless steel,crimped sealed
Window: Polycarbonate
Tube:Copper alloy
Scale ranges: 0-3000psi,0-4000psi
Pressure connection: Brass,1/8″ NPT male
IP class: IP 65, safety hole in middle of window, covered by plastic film
Pressure limitation: Steady: 75% of full scale
Short time: full scale
Ambient temperature: -20+60 deg C
Medium temperature: -20+60 deg C
Options/notes:
Other process connection, eg: G1/8″,G1/4,1/4NPT,etc
Restrictor orifice

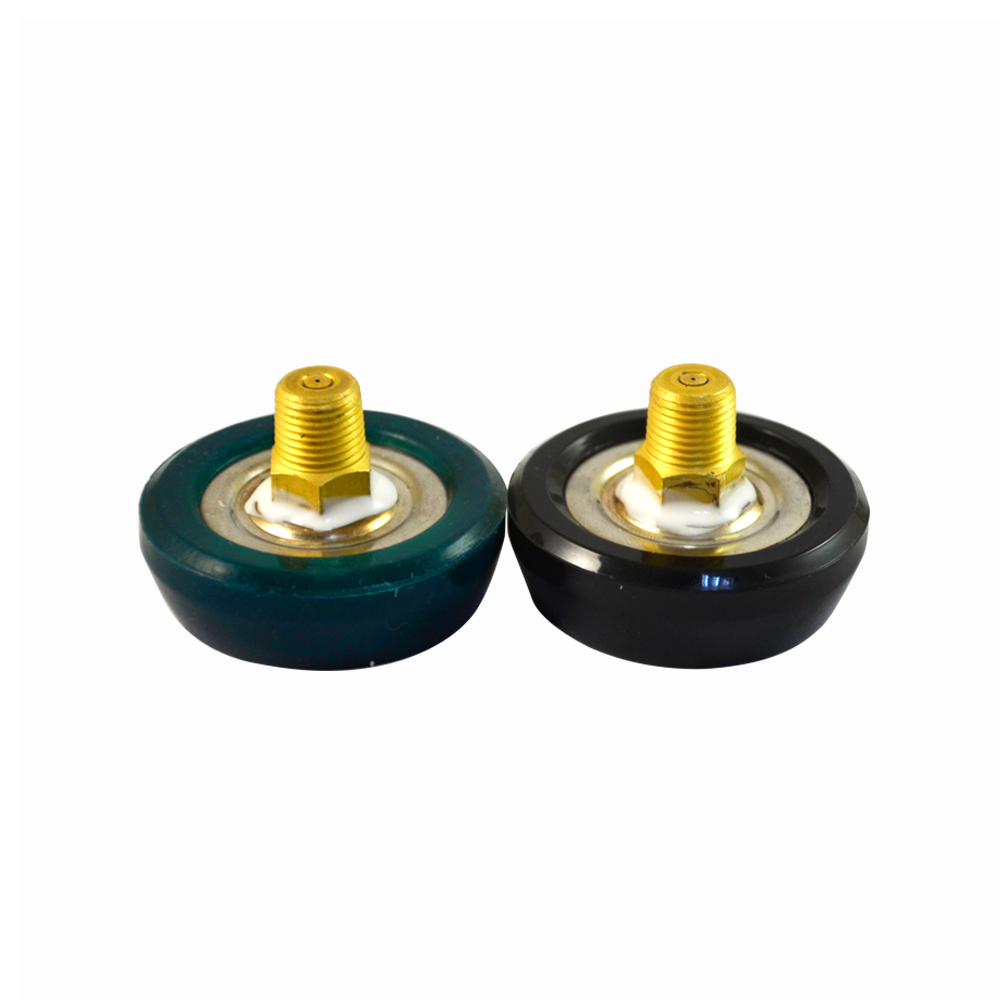

Protective rubber boot on case
Accuracy: 3-2-3%
Other pressure range
