Product Description

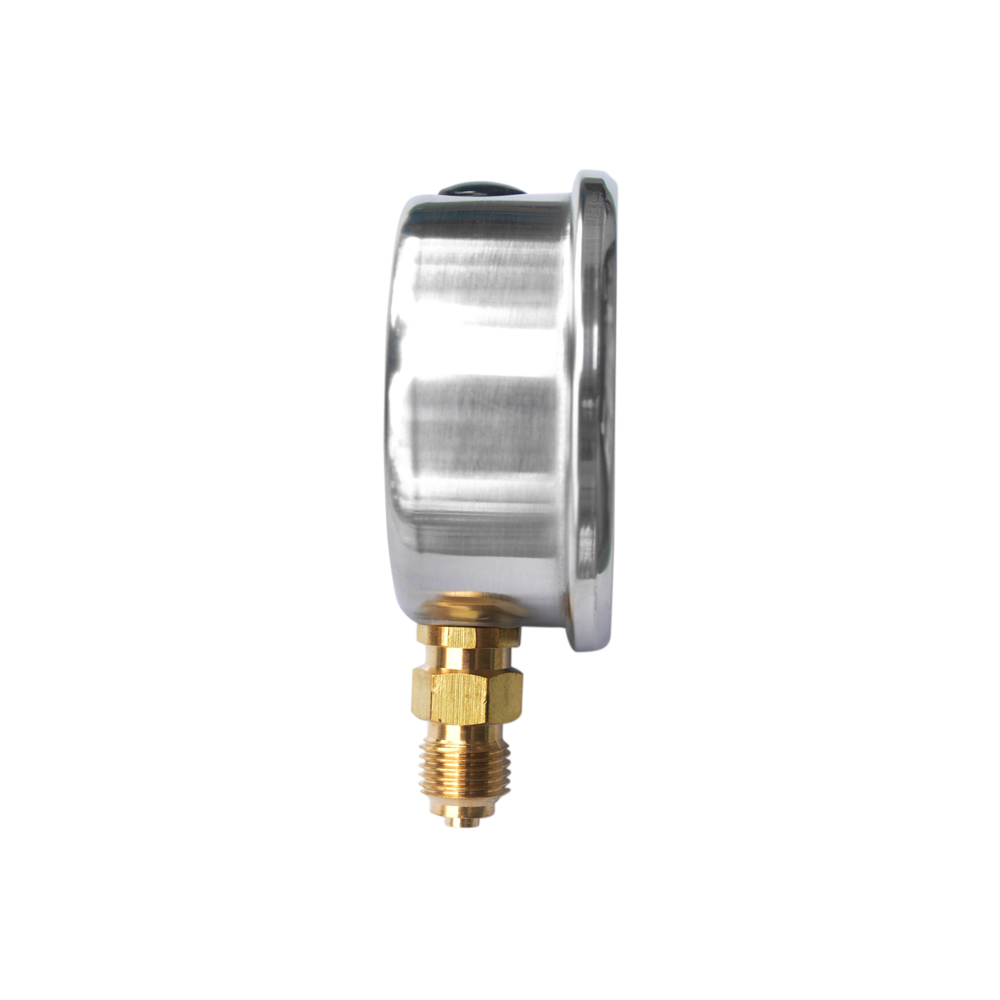

Type 115
Applications
Used for hydraulic and pneumatic systems
Compressors,compressed air system
Suitable for fluid medium which does not clog connection port or brass
Used for providing protection from vibration and pulsation．
Case：stainless steel
Ring：stainless steel
Window：polycarbonate (glass)．
Socket & Connection：brass
Movement：semi-brass(complete brass)
Bourdon tube：copper alloy(brass)
Pointer and dial: aluminum
Liquid：glycerine,silicone
Range：vacuum,compound 0 to 6000 psi
Accuracy Class：F±3/2/3%(ASME B40.100 Grade B)
Kl 2.5 FOR 1 1/2″,2”, Kl 1.6 FOR 2 1/2″,3″,4”
Operating temperature
Ambient：-4°F to 140°F (-20℃ TO +60℃)
Media：140°F (+60℃)
