Product Description

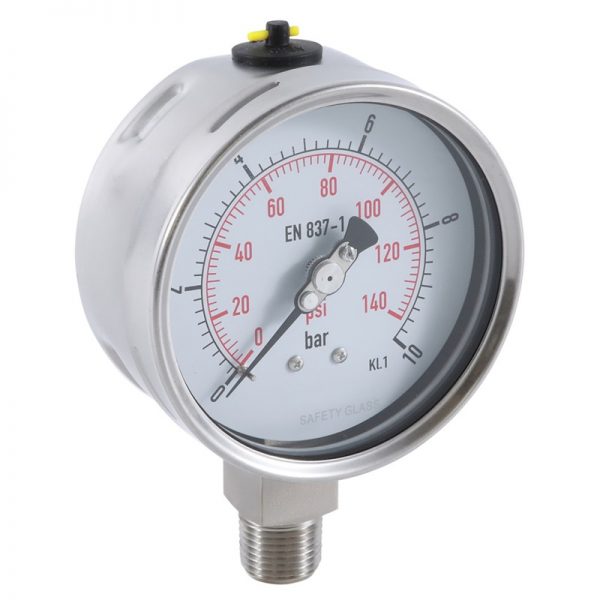

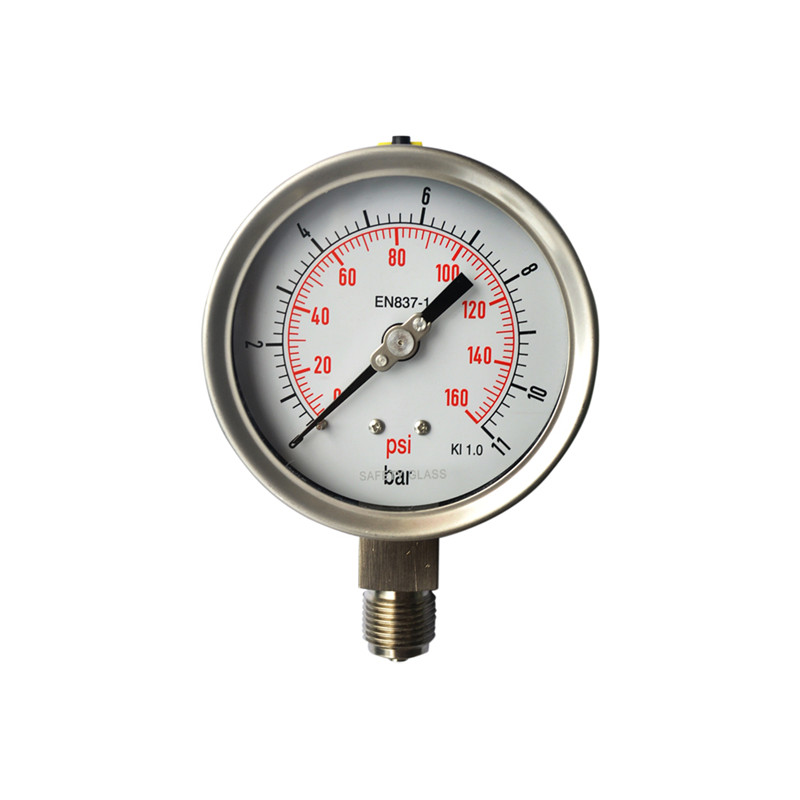

Type 118
Applications
Used for hydraulic and pneumatic systems
Compressors,compressed air system
Suitable for fluid medium which does not clog connection port or stainless steeI
Used for providing protection from vibration and pulsation．
Case：stainless steel
Ring：stainless steel
Window：safety glass (tempered glass,polycarbonate)
Socket & Connection：stainless steel
Movement：stainless steel
Bourdon tube：stainless steel
Pointer and dial：aluminum,adjustable pointer
Liquid：gIycerine,silicone
Rang：vacuum,compound 0 to 15000 psi
Accuracy：±1.6% for 63mm,±1.0% for 100mm and 150mm
Operating temperature
Ambient: -4°F to 140°F (-20℃ TO +60℃)
Media：140°F (+60℃)
