Product Description
QWB118
1.Description

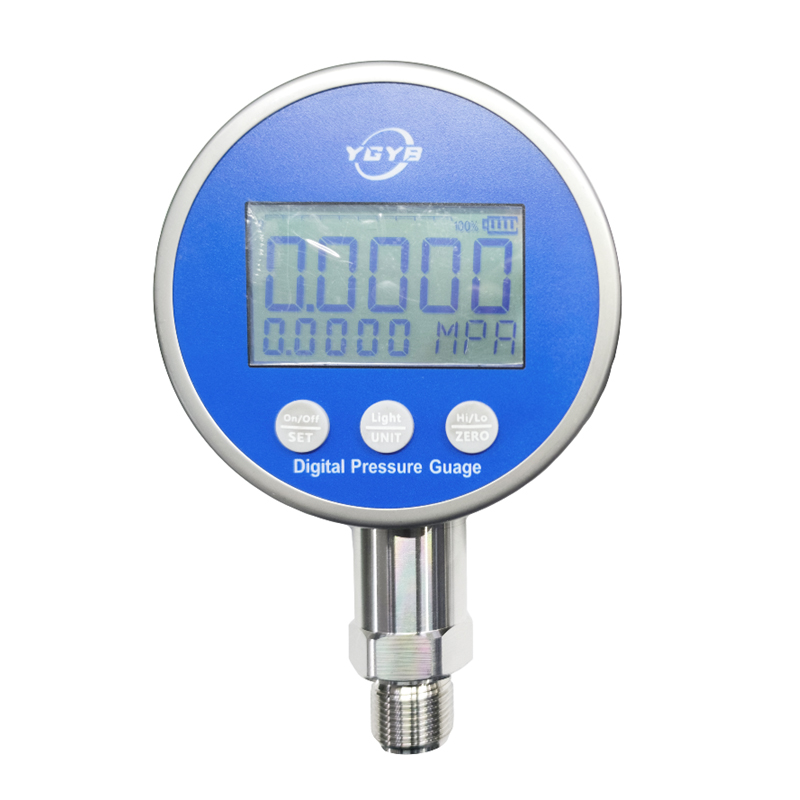

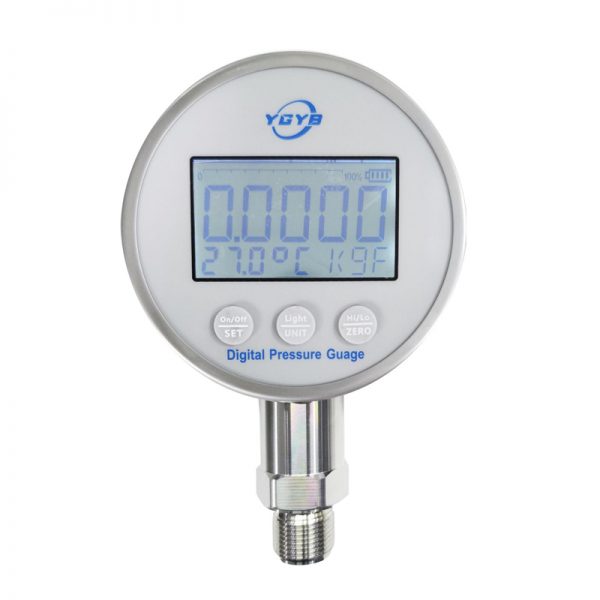

QWB118 Digital pressure gauge is full electronic-structure and battery-powered, which make it very easy for on-site installation. Specifically, a high-precision piezo-resistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drifting amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after being computed and processed, the actual pressure value is showed on the LCD screen. It has benefits: flexible use, simple operation, easy debugging, safe, reliable etc. It is being widely used to measure and display the pressure of the medium in hydro-power, water, petroleum, chemical, mechanical, hydraulic and other industries.
2.Features

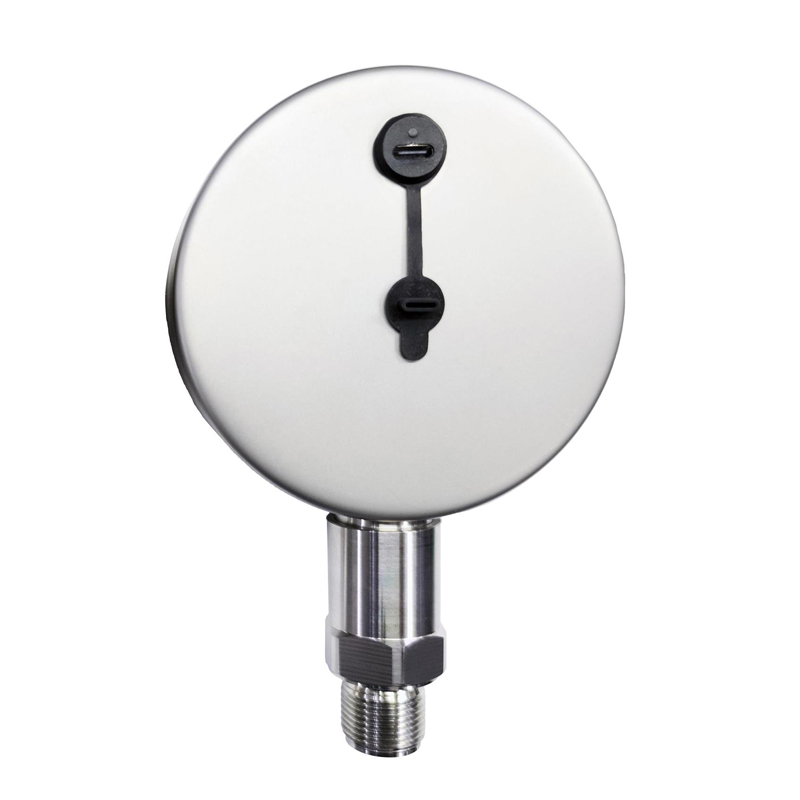

◆ Size 108mm,stainless steel case,
◆ Large-screen LCD display, high resolution,back light,easy to read
◆Automatically record the maximum pressure values during the measurement
◆ Pressure on the percentage of dynamic display, (the progress bar display)
◆ 10 units:Mpa,Kpa,pa,Bar,psi,Tor,ATM,Kgf(kgf / cm 2 ) , MMH(mmH 2 O),MH2(mH 2 O),
◆ 01~15minutes auto-shut off feature,01~05minutes back light feature,
◆ Micro-power consumption, over 2 years in power-saving mode, continuous work 2,000 hours
◆ Parameter correction, correct zero and error in field application.
◆ Pressure range already set before use
◆ Sampling rate: 4 times / sec
◆Applicable to gases and liquids compatible with stainless steel
3.Technical Parameters:
Pressure range:-1~0~100MPA
Accuracy: 0.20%
Overload capacity: 200%
Stability: ≤0.1% /year
Battery voltage: 9VDC
Display: LCD
Display range: -19999~99999
Ambient temperature: -10℃~60℃
Relative humidity: ≤80%
