Product Description

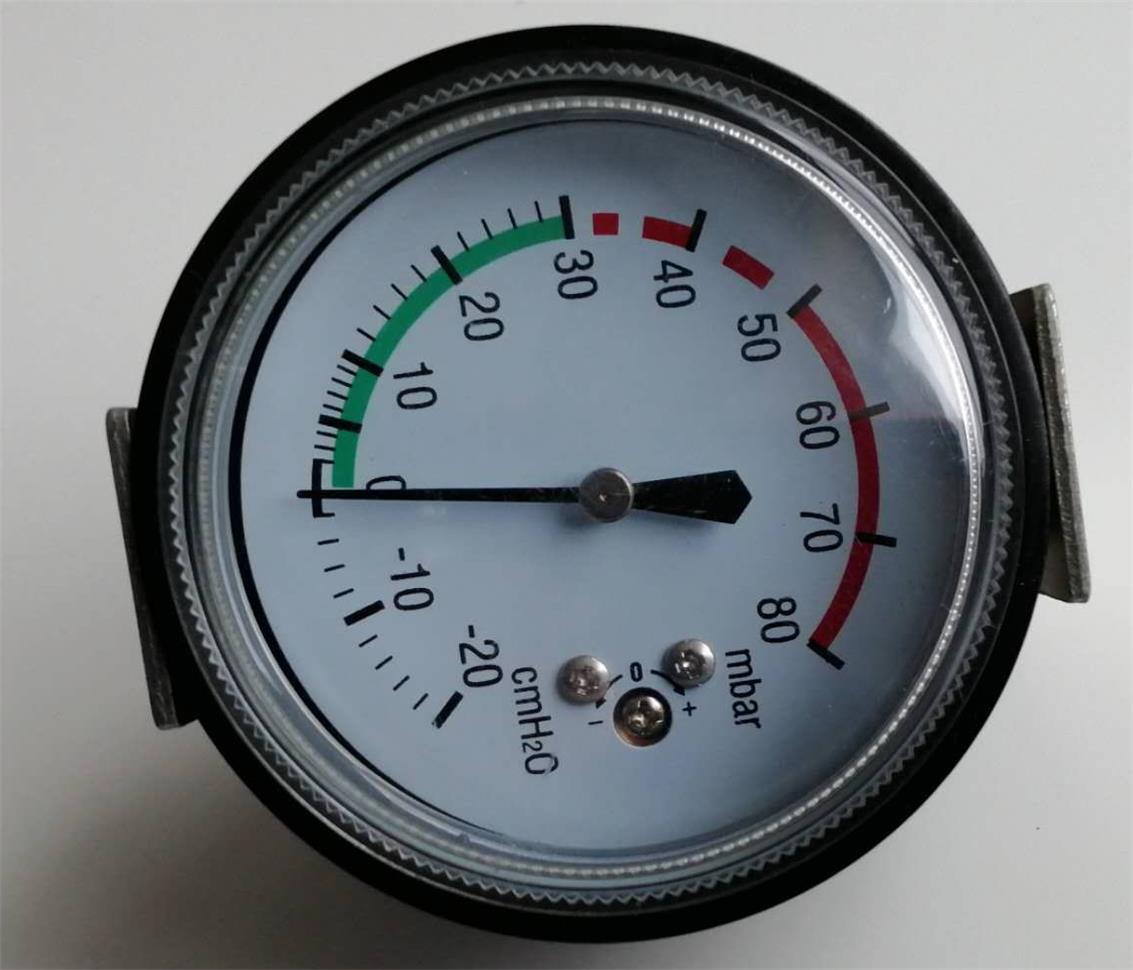

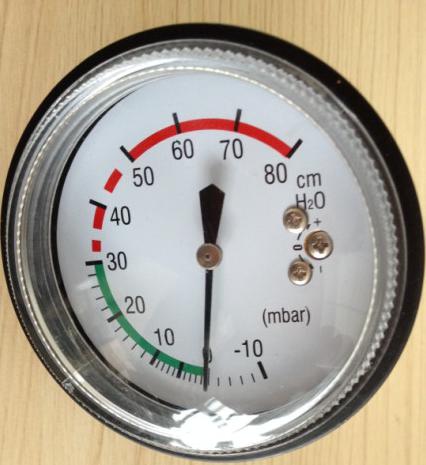

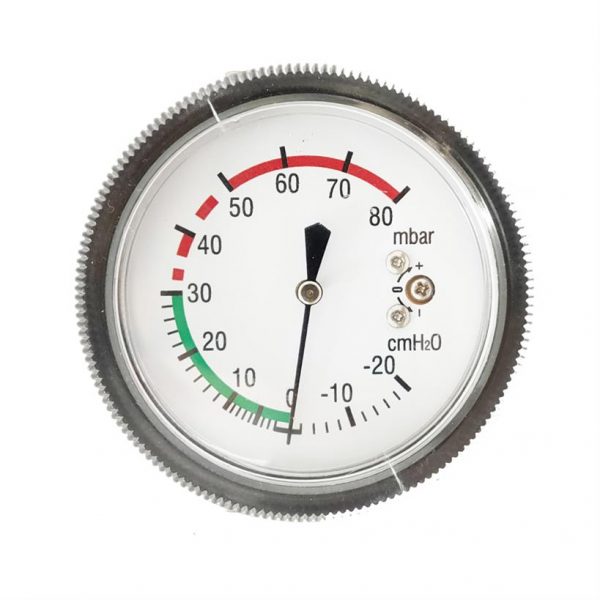

Capsule gauge for breathes/ventilator
Type 121-B
Applications
Used to breathes/ventilator
Size: 63mm

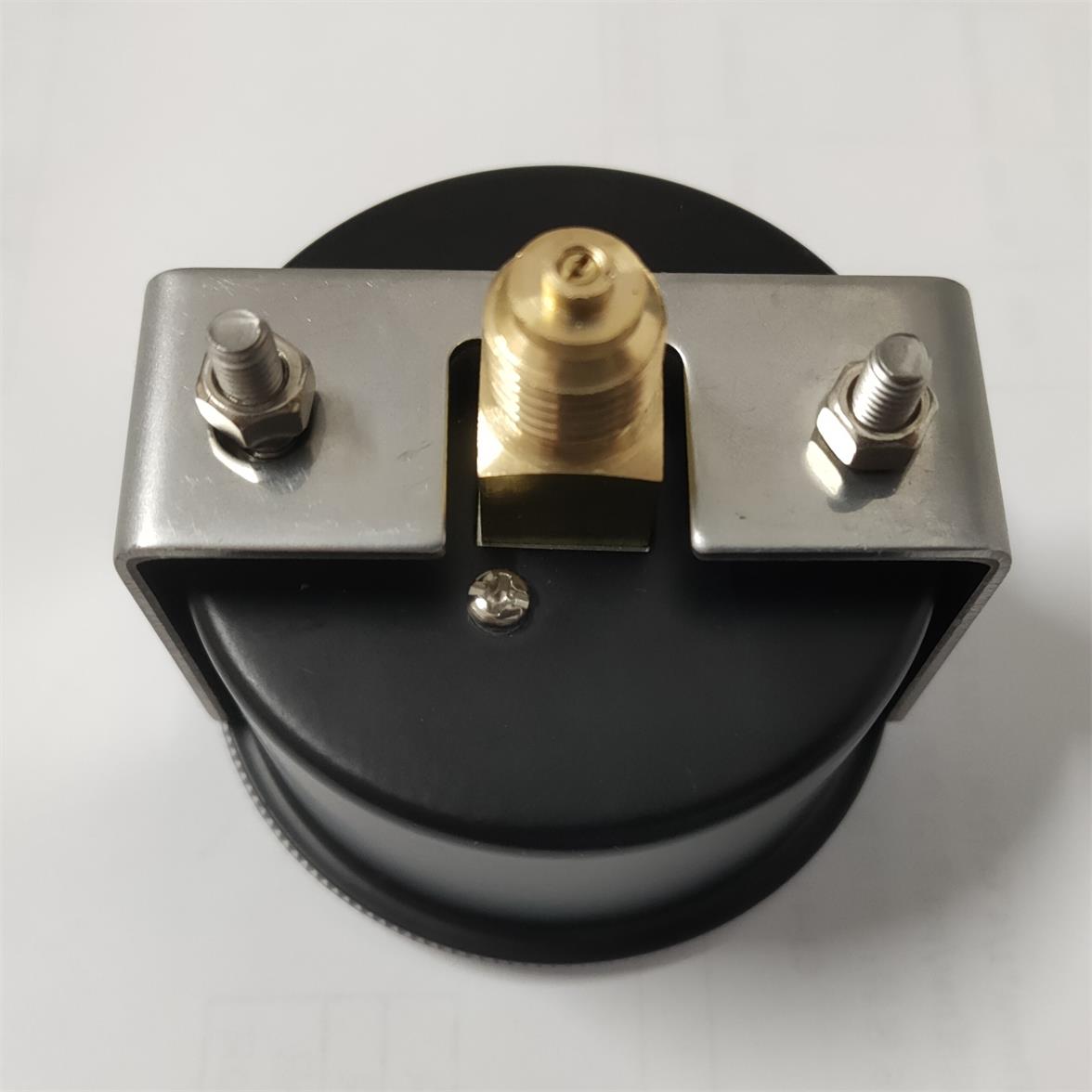

Mount Type: back mount with U-clamp

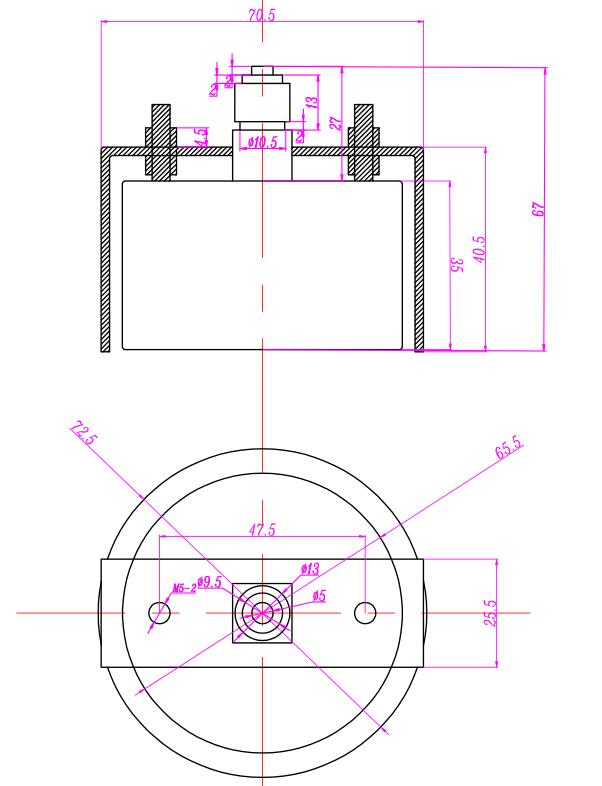

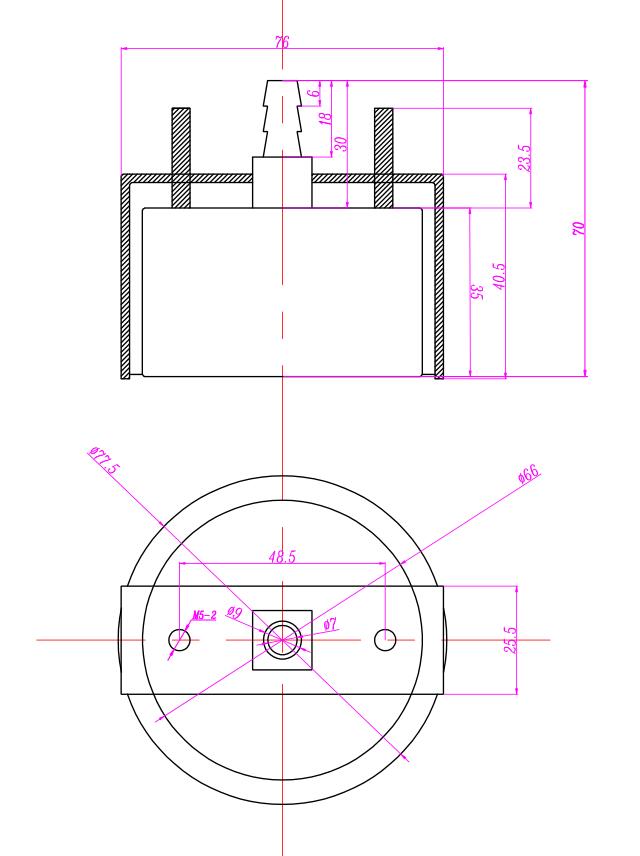

Thread: 6mm quick connection or 1/4″BSP or others
Case：black steel (black painting steel,chromed steel)
Window：acrylic-screw in
Socket & Connection：brass
Movement：semi-brass (complete brass)
Capsule：copper alloy.
Pointer and dial：aluminum
Rang：-20-80cmH2O, -10-80cmH2O, 0-50cmH2O
Accuracy Class：±1.6%
Operating temperature
Ambient：-40F°to 140F°(-40℃ TO 60℃)
Media：140F°(+60℃)
