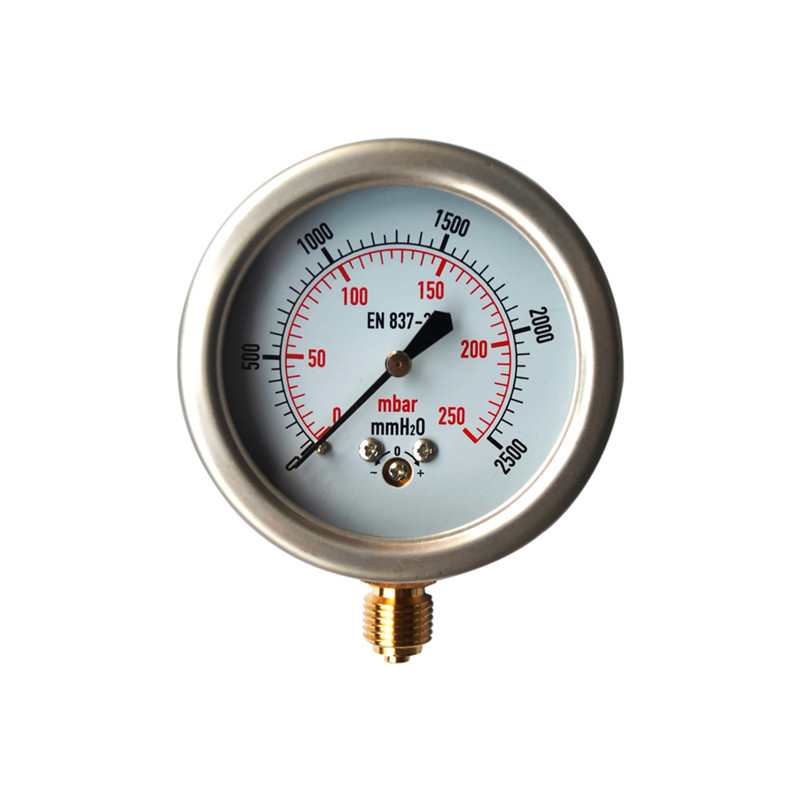

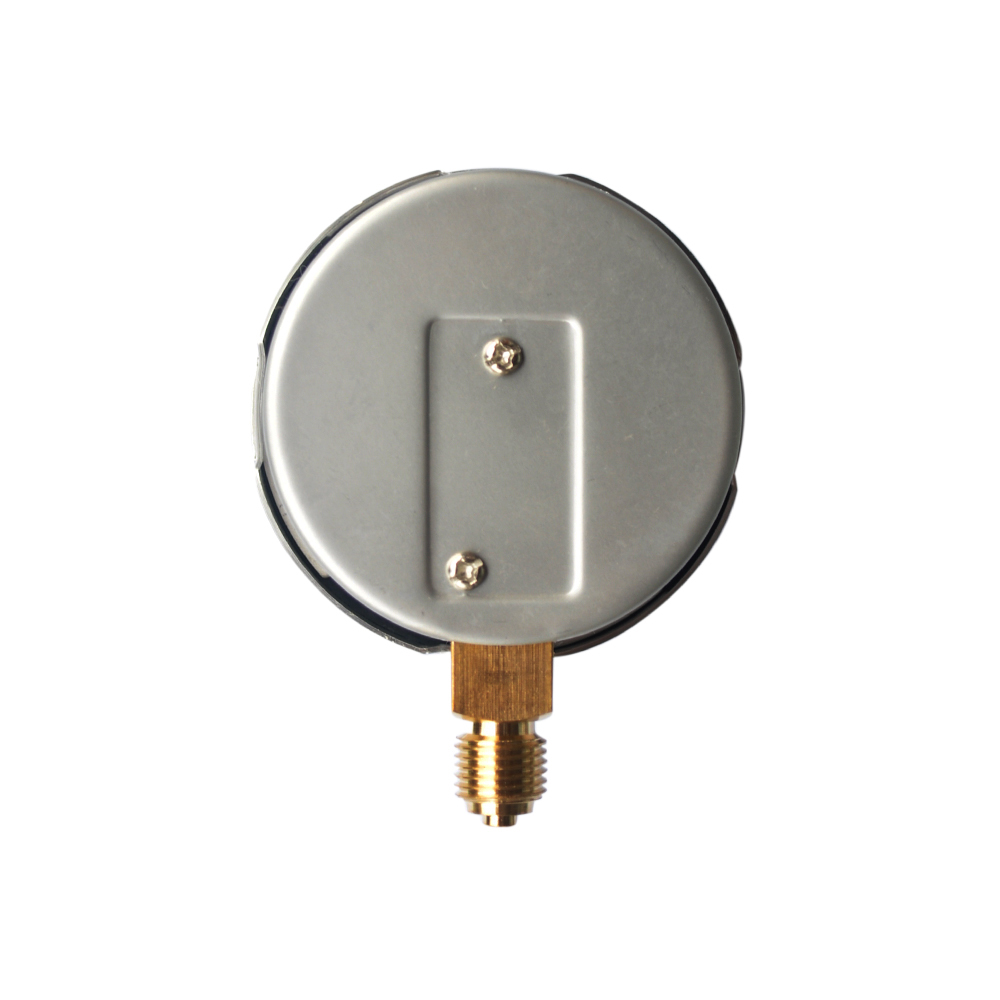

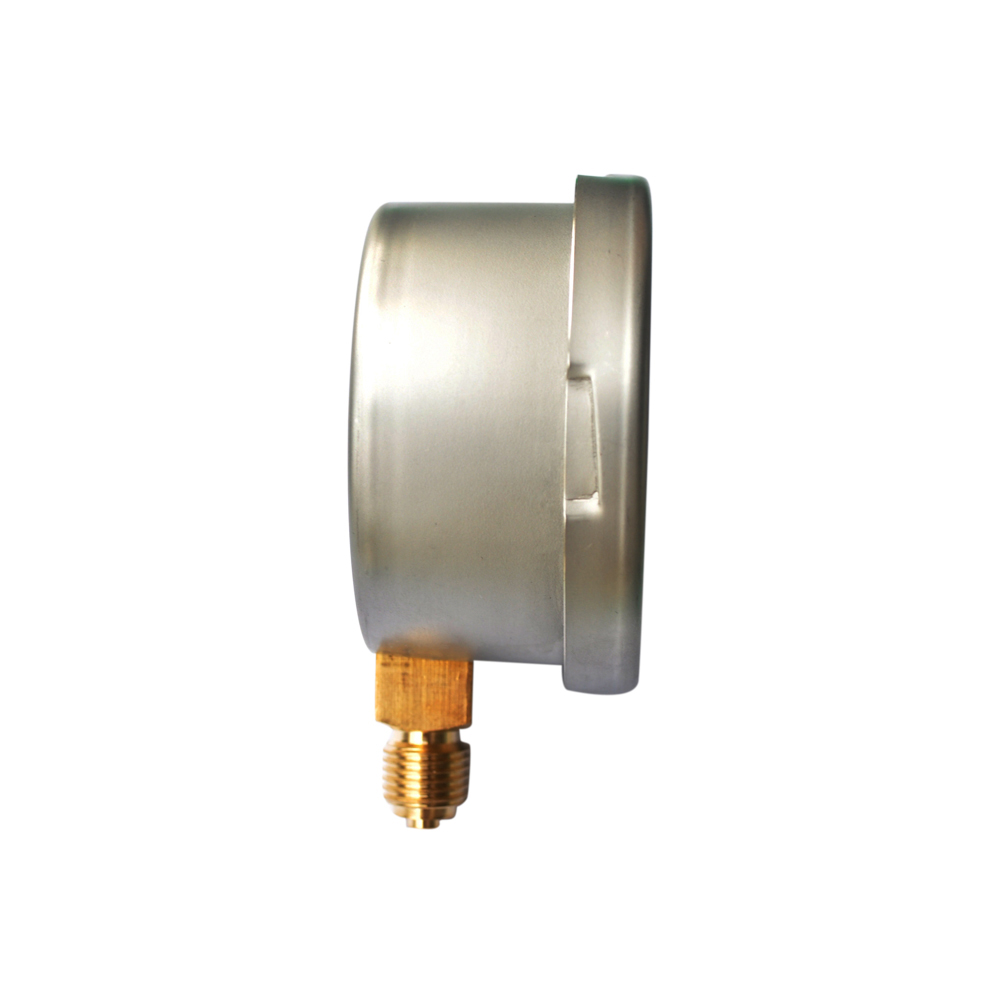

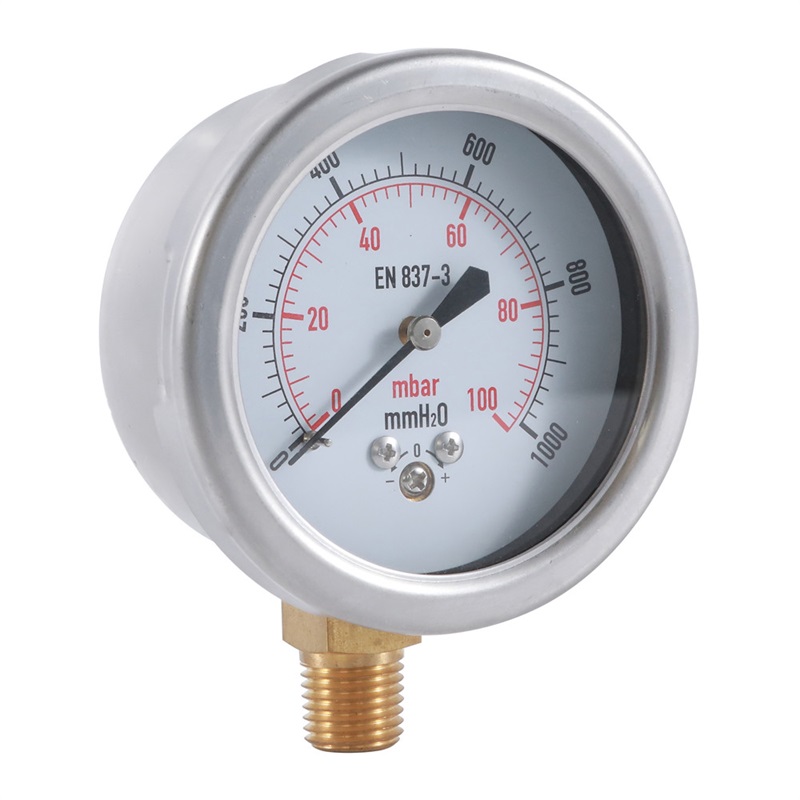

Capsule Gauge

low pressure gauge

Size: 2.5″,4″,6″

Thread: 1/8″,1/4″,3/8″1/2″ BSP, NPT, BSPT or as requsts

Mount: Bottom mount

Category: Capsule gauge

Product Description

Type 122

Applications

Used to measure micro pressure and negative pressure of gas that has no corrosion to copper alloy

Case：Stainless steel

Ring：no ( Stainless steel )

Window：acrylic (glass,acrylic glass,polycarbonate)

Socket & Connection：brass

Movement：semi-brass (complete brass)

Capsule：copper alloy.

Pointer and dial：aluminum

Rang：±12.5mbar, minimum pressure.

Accuracy Class：±1.6%,±1.0%

Operating temperature

Ambient：-40F°to 140F°(-40℃ TO 60℃)

Media：140F°(+60℃)

The Contact: Chris Cheng

We-chat: 18697602330

Whats APP: 0086 18697602330

Address: Block D2 South,DaZhou road 32#,Yuhuatai District,Nanjing city

Q:What is the warranty policy?

A: 1 Year warranty.

Q:What about the MOQ?

A:The minimum order amount is $1000USD. Small order can be negotiation.

Q:How about the delivery time?

A:The delivery time is 2-6weeks depends on the products type and quantity.
