Product Description

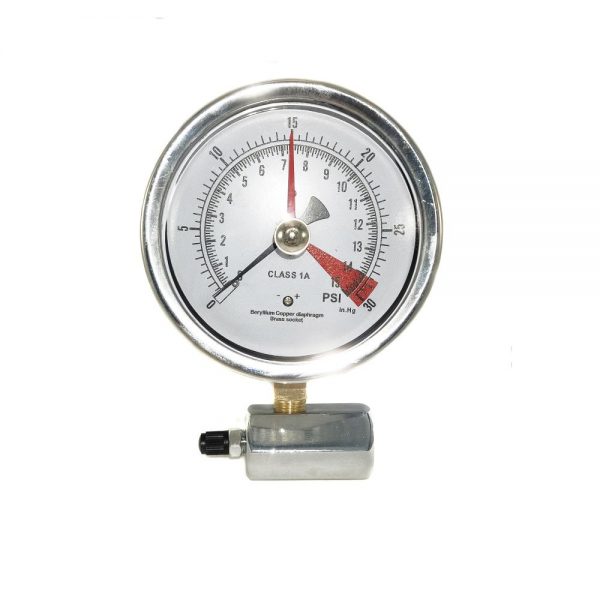

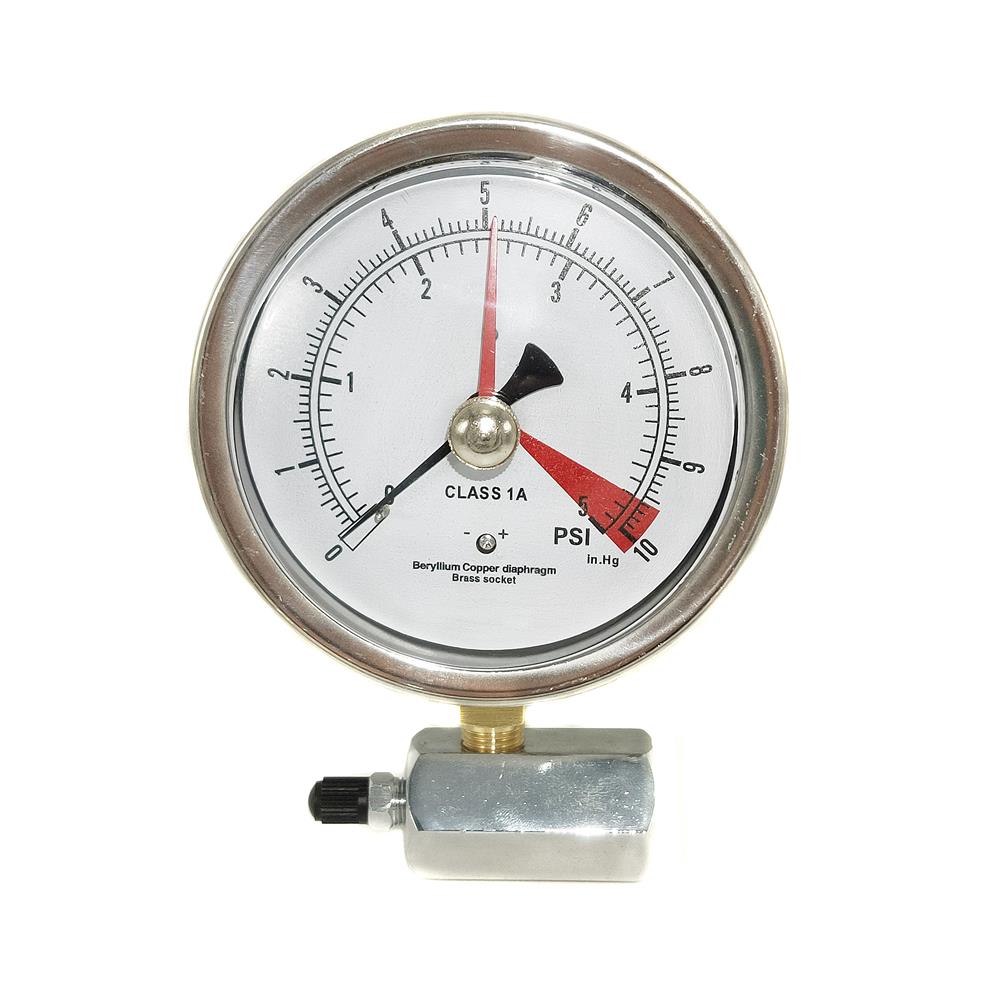

Capsule gauge/Diaphragm gauge
Type 123-D
Applications
Used to test the low pressure accurately to the industry.It is low cost but reliable.
Specs
Size: 100mm/4”
Mount Type: bottom
Thread: 1/4″NPT, with the brass/steel chrome valve-3/4”F NPT
Case：stainless steel case and bayonet bezel
Window：polycarbonate with red-reset pointer
Socket & Connection：brass
Movement：brass
Capsule：Beryllium copper
Pointer and dial：aluminum
Range：0-5psi/10”inHg, 0-15psi/30”inHg or others
Accuracy Class：1A(±1.0%)
Operating temperature: -40F°to 140F°(-40℃ TO 60℃)
Features:
- Overload protector
- Class 1A (±1.0%)
- Easy turn knurled knob
- Foam packing
