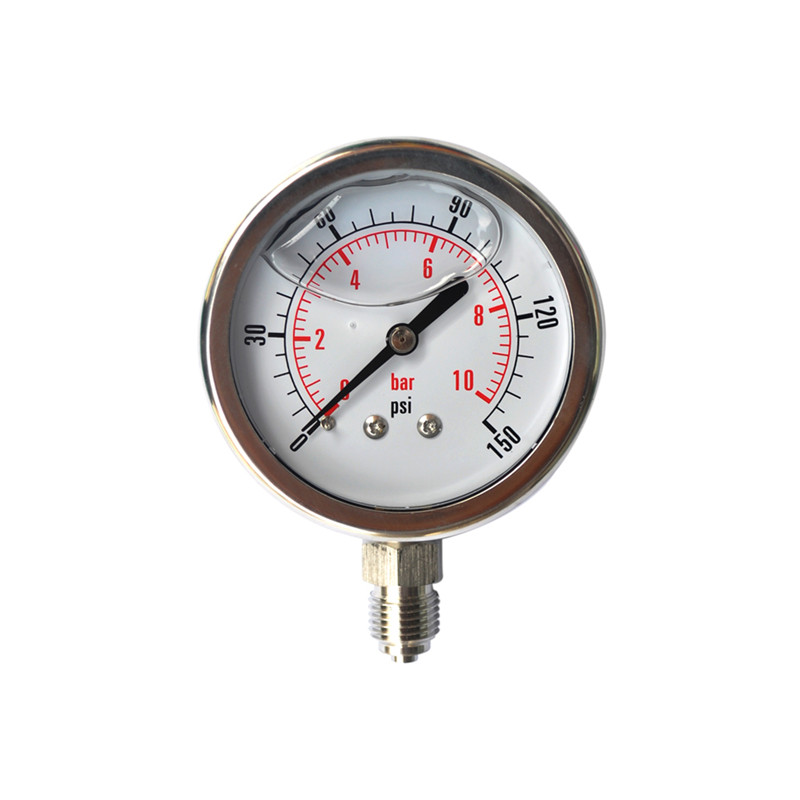

Product Description
Type 116
Applications
Used for hydraulic and pneumatic systems
Compressors,compressed air system
Suitable for fluid medium which does not clog connection port or stainless steel
Used for providing protection from vibration and pulsation．
Case: stainless steel
Ring：stainless steel
Window: polycarbonate (glass)
Socket & Connection：stainless steel
Movement：stainless steel
Bourdon tube：stainless steel
Pointer and dial：aluminum
Liquid：glycerine,silicone
Rang：vacuum,compound 0 to 15000 psi accuracy
Class：F±3/2/3%(ASME B40.100 Grade B)
Kl 2.5 FOR 1 1/2″，2″，Kl 1.6 FOR 2 1/2″，3″，4″
Operating temperature
Ambient：-4°F to 140°F (-20℃ TO + 60℃)
Media：140°F (+ 60℃)
