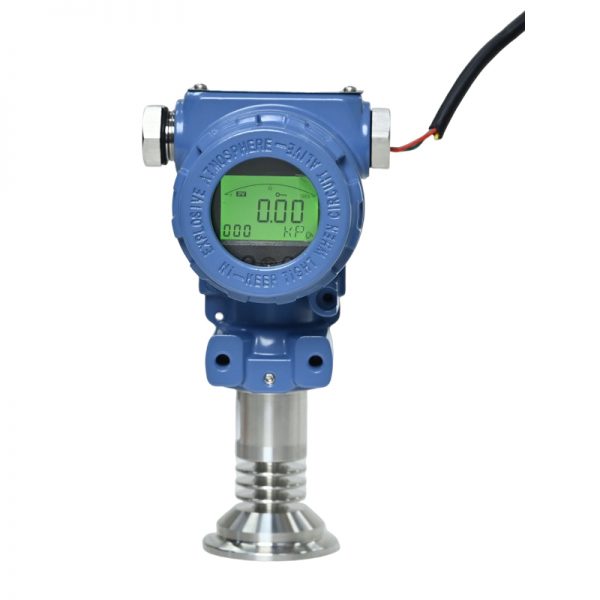

YG210 Sanitary Pressure Transmitter

Product Description

• Measuring Medium：Liquid, gas or mixture which are not attack the wet parts
• Output：4-20mA；0-5V；0-10V；RS485；4-20mA/Hart；4-20mA/RS485
• Display：No/LCD/LED
• Accuracy：1%FS, 0.25%FS, 0.5%FS
• Measurement: gauge pressure, absolute pressure, negative pressure,
• Electrical connection: Aviation plug, cable outlet；
• Connection：flange ,tri-clamp,sanitary diaphragm seals
• （materials SUS304/SUS316）
• Case：Die-cast aluminum alloy，2088
• Mount type：bottom
• Pressure range：-1..0…100bar
• Power supply：10-30VDC/recommend 24VDCIP rate：IP65
• Overload pressure：150%
• Extreme overload：200%
• Compensation temperature：-10-70C
• TM Stability：±0.03% FS/°C​
• Long-term stability：±1%FS/year
• Life Cycle：1×10⁶ （cycles）
• Certificate：EMC,CE,EX
• Storage：temperature -40-60℃, humidity≤90%RH, atmospheric pressure 1atm
